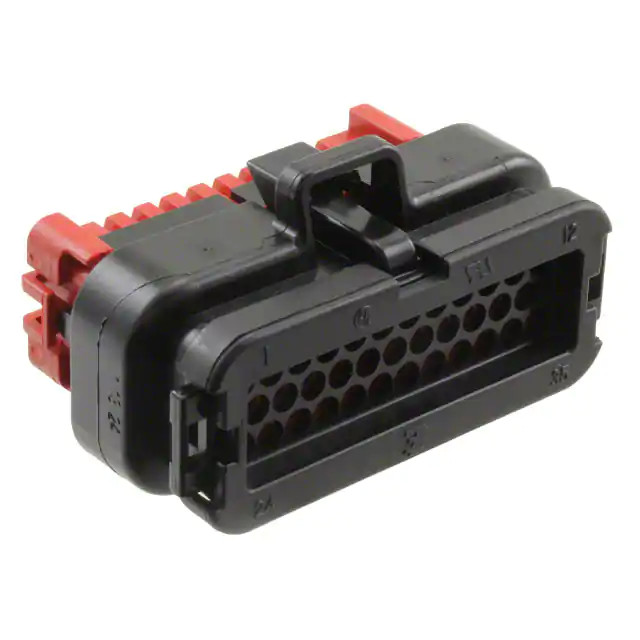

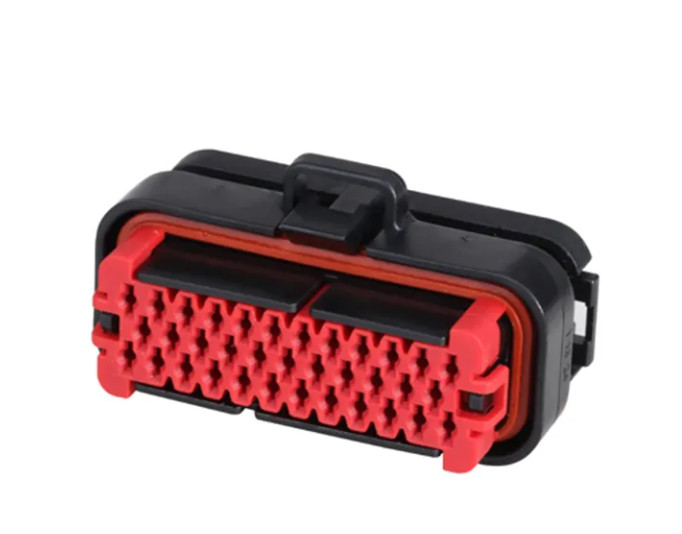

Ampseal 776164-1 35 Pin ECU Plug Waterproof Car Electrical Connectors
  • Ampseal 776164-1 35 Pin ECU Plug Waterproof Car Electrical Connectors
  • Ampseal 776164-1 35 Pin ECU Plug Waterproof Car Electrical Connectors
Place of Origin China
Certification ISO9001, IS014001, IATF16949
Minimum Order Quantity 500 pcs
Packaging Details blisters, tube, tray
Delivery Time 2 weeks
Supply Ability 2k pcs daily capacity
Product Details
Plastic Material PBT GF30 Contact Material Brass Or Phosphor Bronze
Current Rated 8-10A Pitch 4.0mm, 3 Rows
Pins 8, 14, 23, 35pins Plating Tin Or Gold Plated
Highlight

Ampseal 776164-1 car electrical connectors

,

35 Pin waterproof electrical connectors

,

ECU Plug waterproof electrical connectors
Product Description

Ampseal 776164-1 35 Pin Auto Waterproof Electrical ECU Plug Housing Connector for Female Terminal





        PRODUCT DESCRIPTION



Part Number  40040-35Y-2
Compatible with TE P/N :  776164-1
Nos. of Position :  35
Pitch (mm) :  4.0
Mating Tab Width (mm) :  1.3
Cable Exit Angle :    180°
Number of Rows :  3
Sealable  Yes
Colour :  Black
Body Material :  PBT / PA66
Current Rating :  8A
Working Temperature: :  -40°C-125°C
Connector Application :  Wire-to-Board, Wire-to-Device, Wire-to-Wire
UL Flammability Rating :  UL 94-HB



Ampseal 776164-1 35 Pin ECU Plug Waterproof Car Electrical Connectors 0
