10.00mm Pitch Automotive Connector Housing Wire To Board 2 Circuit Black PA66 UL94V0
  • 10.00mm Pitch Automotive Connector Housing Wire To Board 2 Circuit Black PA66 UL94V0
  • 10.00mm Pitch Automotive Connector Housing Wire To Board 2 Circuit Black PA66 UL94V0
  • 10.00mm Pitch Automotive Connector Housing Wire To Board 2 Circuit Black PA66 UL94V0
Place of Origin China
Certification ISO9001, IATF16949
Minimum Order Quantity 1000 pcs
Packaging Details poly bag
Delivery Time 2 weeks
Supply Ability 10k daily capacity
Product Details
Plast Material PA66, UL94V0 Current Rated 50A
Pins 2-6pin Wire Gauge 8-16AWG
Rated Voltage 600V Temperature Range -25-+85 Degree
High Light

10.00mm Pitch automotive connector housing

,

automotive connector housing Wire To Board

,

automotive connector housing PA66 UL94V0
Product Description

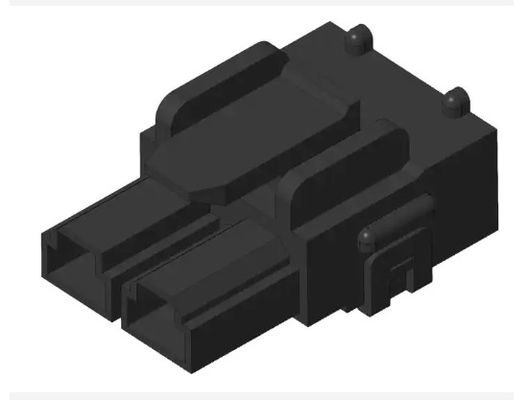

10.00mm Pitch Plug Housing Single Row panel mount wire to board 2 Circuit Black PA66 UL94V0



Product desc:

Current Rating
50A, AC, DC Max
Voltage Rating
600V, AC, DC
Material
PA66 V0

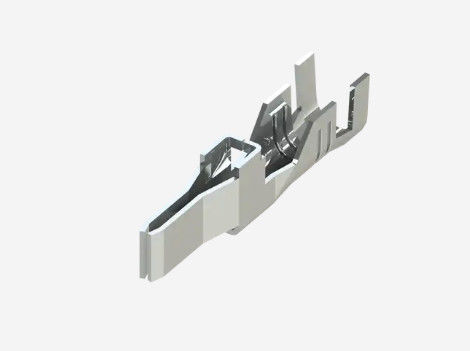

Mating terminal
T9910PS-2/2A



  • Product performance:

* Current rating: 50A AC, DC (AWG #8) Max.
* Voltage rating: 600V AC, DC Max.
* Temperature range: -40°C to +105°C (V0) , -25°C to +85°C (V2)
(including temperature rise in applying electrical current)
* Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 15 mΩ max.
* Insulation resistance: 1000 MΩ min.
* Withstanding voltage: 1000VAC/minute
* Applicable wire: AWG #8 to #16
* Material:
Housing: PA66 UL94V-0, or PA66 UL94V-2
Terminal: Phosphor bronze, tin plating or selective gold plating

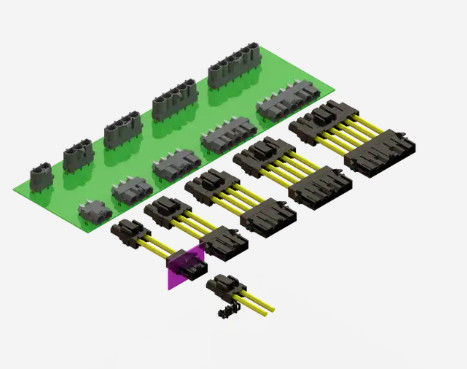

* Circuit Number:
1x2,1x3,1x4,1x5,1x6
10.00mm Pitch Automotive Connector Housing Wire To Board 2 Circuit Black PA66 UL94V0 0
