Brand | Shinelink | Pins | 4p |
---|---|---|---|
Gender | Male | Code | C Code |
Highlight | C Code FAKRA HSD Connector,4 Pin FAKRA HSD Connector,Automotive Male Connector For LVDS |

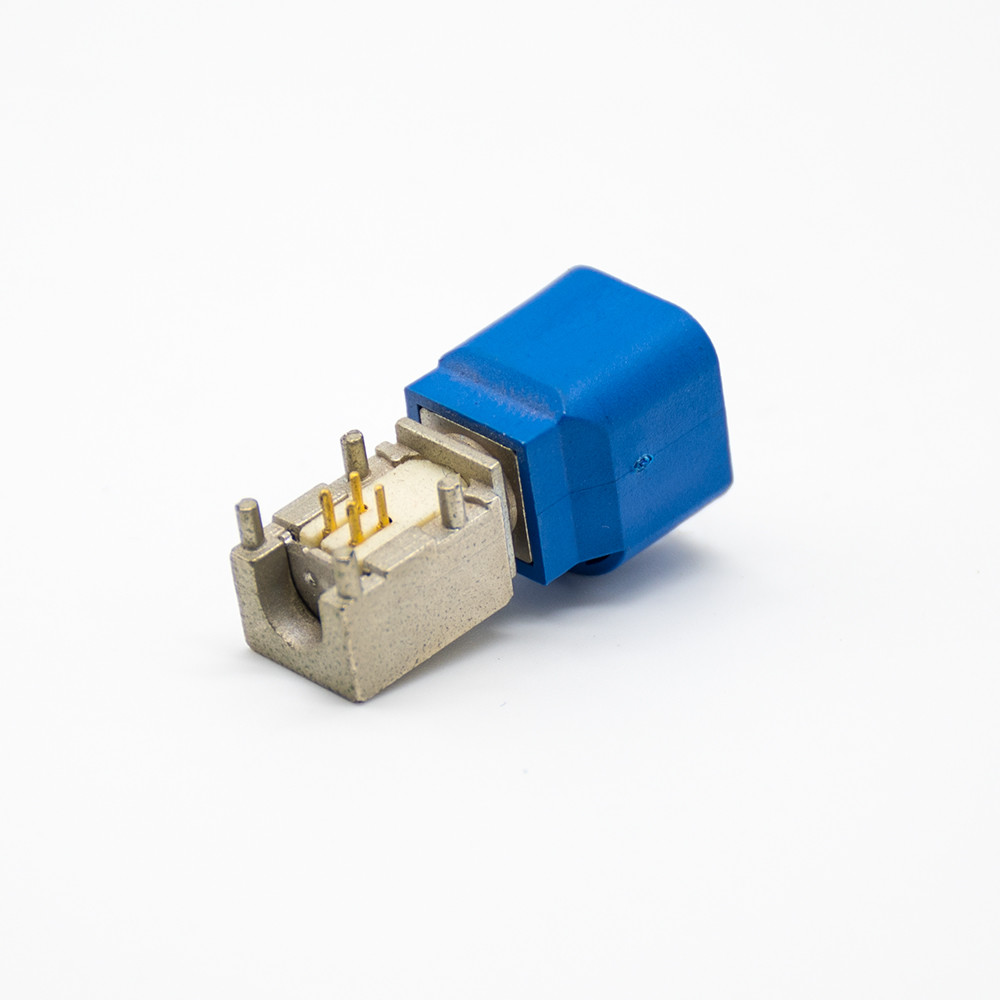

Fakra 4 Pin Automotive Male Connector for LVDS
Place of Origin: China
Brand Name: ODM
Model Number: RHT-HSD-20
Type: Fakra HSD, Fakra HSD LVDS 4 Pin
Application: Automotive, Vehicle infotainment modules, Cameras
Gender: Male
Pins: 4p
Code: C Code
Frequency range: DC - 6 GHz
Impedance: 50 ohm/75 ohm;
Housing: PA66+30%GF
Payment: TT/PAYPAL/WESTERN UNION
Lead time: 7 to 10 days
Packaging & Delivery
Selling Units: Single item
Single package size: 20X18X10 cm
Single gross weight: 0.130 kg
Package Type: Blister Box+Carton / PE bag+Carton
Lead Time :
Quantity(Pieces) | 1 - 5 | 6 - 50 | 51 - 100 | >100 |
Est. Time(days) | 5 | 7 | 10 | To be negotiated |
Product Name: C Code Signal Blue Fakra 4 Pin Automotive HSD Male Plug Connector for LVDS
Tag: Fakra HSD Panel, Plug/Male, Right Angled/90°
Product No.: RHT-HSD-20
HSD Connector Technical Datasheet | ||
Materials | Body | PA66 / PBT |
Terminal | Brass ,Au Plated / Nickel | |
Base die castings | Zinc | |
Mechanical Characteristics |
Insertion force | ≤30N |
Withdrawal force | ≥ 5N | |
Locking force | ≥ 100N | |
Durability | > 25 times | |
Electrical Characteristics |
Frequency | 0-6Ghz |
Impedance | 100Ω | |
Insulation resistance | 1000MΩ Min , After swapping 500MΩ Min | |
Contact resistance | 15MΩ Max, After swapping 40MΩ Max | |
Withstand Voltage | 250V AC | |
Working Voltage | 100V DC | |
Working Current | ≤ 1.5A DC | |
Environment Characteristics |
Working temperature | -40 ℃ - +105℃ |
Advantages:
• high abrasion and corrosion resistance;
• excellent intermodulation;
• low contact resistance;
