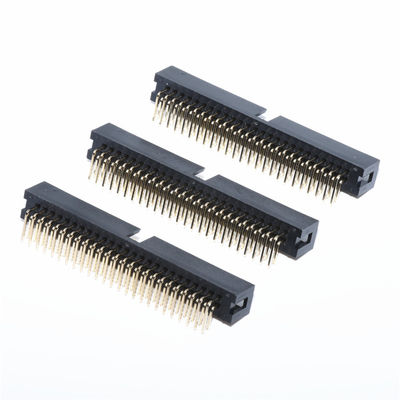

2.54mm Box Header 40Pin 2*20P Right Angle PCB Connector DIP 2.5 PA6T Automotive
  • 2.54mm Box Header 40Pin 2*20P Right Angle PCB Connector DIP 2.5 PA6T Automotive
  • 2.54mm Box Header 40Pin 2*20P Right Angle PCB Connector DIP 2.5 PA6T Automotive
  • 2.54mm Box Header 40Pin 2*20P Right Angle PCB Connector DIP 2.5 PA6T Automotive
  • 2.54mm Box Header 40Pin 2*20P Right Angle PCB Connector DIP 2.5 PA6T Automotive
  • 2.54mm Box Header 40Pin 2*20P Right Angle PCB Connector DIP 2.5 PA6T Automotive
Place of Origin China
Certification ISO9001, ISO14001, IATF16949
Minimum Order Quantity 2000 pcs
Packaging Details bliaster, tube, tray
Delivery Time 2 weeks
Supply Ability 10k pcs daily capacity
Product Details
Plastic Material PBT, PA6T, LCP Contact Material Brass, Phosphor Bronze
Pitch 2.54mm Current Rated 3A
Plating 3A Operating Temperature -40--+105 Degree
High Light

2.54mm box header 40Pin 2*20P

,

2.54mm box header DIP 2.5 PA6T Automotive

,

40Pin 2*20P right angle pcb header
Product Description

2.54 mm BOX header 40Pin 2*20P RIGHT ANGLE PCB Connector DIP=2.5 PA6T



Quick Details

Place of Origin: Guangdong, China

Model Number: S12-12340-00

Type: Adapter

Application: PCB

Gender: Male

Pins: optional

Product name: PCB box connector

Material: PA6T

Color: black

Pitch: 2.54mm

Connector type: Male

Certificate: ISO9001/CE/ROHS/REACH/MSDS/SGS

MOQ: 1000pcs



Packaging & Delivery

Selling Units: Single item

Single package size: 48X35X23 cm

Single gross weight: 15.800 kg

Package Type: 100 pcs in a box, 26 boxes in a carton



Product Description



2.54 mm BOX header 40Pin 2*20P RIGHT ANGLE PCB Connector DIP=2.5 PA6T



Series No. S12-123xx-00
Description 2.54mm 2*N Pin right angle 90 Degree Box Header
Pin Pitch 2.54mm
Pin Ways 6P to 64P
Current Rating 3A
Insulation Resistance 1000M Ω MIN
Voltage Rating 500 V AC/DC
Contact Resistance 20mΩ MAX
Operating Temperature -40°C to +105°C
Contact materials Brass
Insulation PA6T
Flammability Polyester UL 94V-0
Contact Plated: Gold plated 0.8 u” over Nickel plated 50 u”
Packing way PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing.
MOQ 1000PCS
Lead time 3-10 working days



Our Services

Why choose us?

1. Over 10 years manufacture experience, and many years export experience.

2. We value every inquire send to us, ensure quick and competitive offer.

3. We put your order into our tight production schedule, ensure you punctual delivery time.

4. We are a sales team, with all technical support from our engineer team.



After-sales service:

1. We deal with you complains within 24 hours.



2. Production configuration design using modular approach can be developed and produced according to user need all kinds of special speciation production to meet the diverse need of the market.



3. All staffs in our company with philosophy of “Integrity, dedication, truth-seeking, enterprise”, would be dedicated to provide high quality service and products for you, and wish to create better future with you!
