Plastic Material | PA6T, PBT, LCP | Contact Material | Brass, Phosphor Bronze |
---|---|---|---|
Pitch | 2.54mm | Current Rated | 3A |
Plating | Gold Or Tin Plated | Contact Resistance | 20 MΩ Max |
Insulation Resistance | 1000MΩ Min | ||
High Light | 2.54mm pitch 5 pin Pin Header Connectors,2.54mm pitch 5 pin connector,5 pin connector SMT type PA6T automotive |

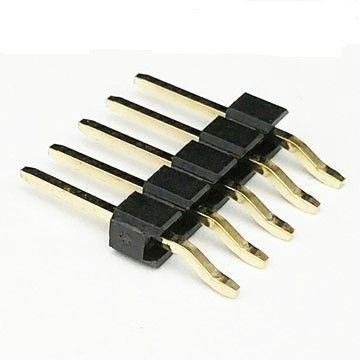

2.54mm pitch 5 pin single row horizontal SMT type Pin Header connector PA6T automotive gold plated
Quick Details
Model Number: P120-11XXMXX
Type: PCB Connector
Supplier Type: Original manufacturer
Place of Origin: Guangdong, China
Product Name: Pin Header
Pitch: 2.54mm
Ways / Pins Per Row: 2~40P
Insulator Height for Choice: 1.5mm ,1.7mm ,2.0mm ,2.5mm, 4.3mm, 5.0mm, 7.4mm
Contact Materials: Brass
Housing Materials: PBT,PA6T,PA9T, or LCP,Black
Connector Type: PCB Connector
Contact Plating: Gold(Au) or Tin(Sn) plated over Nickel(Ni)
Certificate: ROHS SGS ISO9001/14001
Contact Resistance: 20m Ohms Max
Supply Ability
Supply Ability: 100000 pcs per month
Packaging & Delivery
Packaging Details: Tube,Tube+CAP,Tray,Tape&Reel,Plastic Box
Port: Shenzhen or Hong Kong;
Specifications:
Product Name | 2.54mm pitch 5 pin single row horizontal SMT type Pin Header connector |
Pitch | 2.54mm |
Detail | single layer single row pin header type |
Housing | PA9T/LCP+30%GF UL94V-0 |
Number of Pin | 2~40pin |
Insulator Height for Choice | 1.5mm ,1.7mm ,2.0mm ,2.5mm, 4.3mm, 5.0mm, 7.4mm |
Brand Name | OEM |
Contact Material | Brass |
Insulator Material | PBT ,PA6T ,PA9T ,LCP ,PA66 ,PA46 ,PPS ,PA115(Halogen Free) |
Rating Current | 2.0AMP |
Contact Resistance | 20mΩ Max |
Withstanding Voltage | AC 500V/Minute |
Insulating Resistance | 1000MΩ Min |
Temperture Range | -40°C to +105°C |
Plating | Gold(Au) or Tin(Sn) plated over Nickel(Ni) |
Packaging | PE Bag, Tube, Tape& Reel, Tube+ CAP, Tray, Plastic Box |
FAQ:
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in various connectors and wire harness. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. And our advantage and strength is to support the customers’ unique design. And we can offer the design and engineering support for the customization.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: How long is your delivery time?
A: The general delivery time is 14-21 days after receiving your order confirmation. And if we have the goods in stock, it will only take 1-2 days.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
