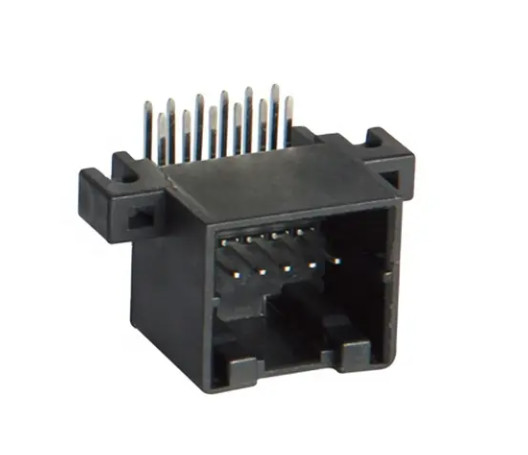

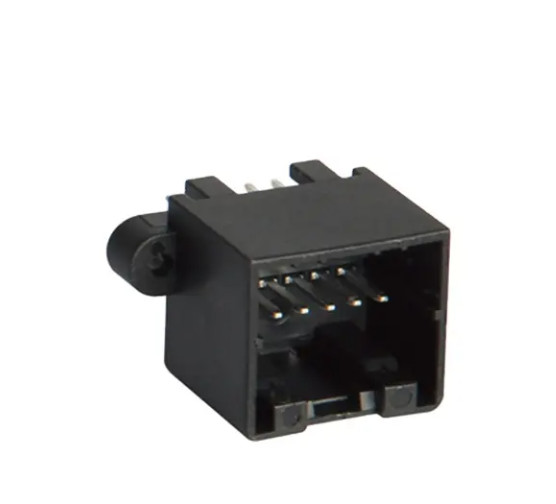

174973-2 Automotive PCB Header 12 Pin Auto Electrical Connector 2.5mm
  • 174973-2 Automotive PCB Header 12 Pin Auto Electrical Connector 2.5mm
  • 174973-2 Automotive PCB Header 12 Pin Auto Electrical Connector 2.5mm
Place of Origin China
Certification ISO9001, ISO14001, IATF16949
Minimum Order Quantity 2000 pcs
Packaging Details tube, tray
Delivery Time 2 weeks
Supply Ability 10k daily capacity
Product Details
Plastic Material PBT Contact Material Brass, Phosphor Bronze
Pitch 2.5mm Pins 8, 12, 16, 20pin,
Current Rated 3-5A Plating Tin Or Gold Plated
Highlight

174973-2 Auto Electrical Connector

,

Auto Electrical Connector 2.5mm

,

174973-2 Automotive PCB Header 12 Pin
Product Description

174973-2 Automotive PCB Header 12 Pin Auto Electrical Connector straight 2 rows PBT black



PRODUCT DESCRIPTION



Part Number 25011-12A-2
Compatible with TE P/N : 174973-2
Nos. of Position : 12
Pitch (mm) : 2.50
Mouting Type: Vertical / 180°
Number of Rows : 2
Sealable No
Colour : Black
Body Material : PBT Resin
Contact Material: Copper Alloy, Tin plated
Tab Width (mm) : 1.0
Tab Thickness (mm) : 0.64
Current Rating : 5A
Operating Voltage (VDC) : 12
Working Temperature: : -40°C-125°C
Connector Application : Wire to Board (Printed Circuit Board PCB) / Signal Circuit
UL Flammability Rating : UL 94-HB



174973-2 Automotive PCB Header 12 Pin Auto Electrical Connector 2.5mm 0
