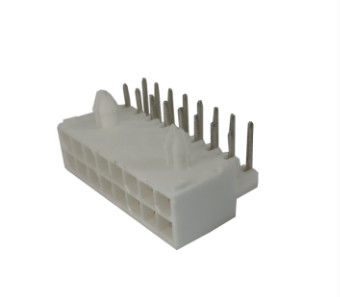

CONN HEADER R/A 14POS 4.14MM 770973-1 Dual Row Connector Right Angled PA66 Automotive
  • CONN HEADER R/A 14POS 4.14MM 770973-1 Dual Row Connector Right Angled PA66 Automotive
  • CONN HEADER R/A 14POS 4.14MM 770973-1 Dual Row Connector Right Angled PA66 Automotive
Place of Origin China
Certification ISO9001, ISO14001, IATF16949
Minimum Order Quantity 1000 pcs
Packaging Details tube, tray
Delivery Time 2 weeks
Supply Ability 10k daily capacity
Product Details
Plastic Material PA66 UL94V0 Contact Material Brass, Phophor Bronze
Pitch 4.14mm Pins Dual, 2*2 To 2*12pin
Rated Current 7A Plating Tin Or Gold Plated
Withstanding Voltage 1000V
Highlight

770973-1 dual row connector

,

Dual Row Connector Right Angled PA66 Automotive

,

CONN HEADER R/A 14POS 4.14MM
Product Description

CONN HEADER R/A 14POS 4.14MM 770973-1 dual row right angled PA66 automotive





Model Number equivalent to 770973-1
Type Header
Place of Origin China
Brand NA
Application -
Interface Type Male Pin
Packaging Bulk
Supplier Type Agency
Cross Reference -
Material Brass
Media Available -
Description CONN HEADER R/A 14POS 4.14MM
Termination Solder
Features -
Number of Positions 14
Pitch 0.163 (4.14mm)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Current Rating (Amps) Standard
Voltage Rating Standard
Center Contact Plating Tin-Lead
Board Size Standard
Head Style Board to Cable/Wire
D/C Newest
Number of Positions Loaded All
Shrouding Shrouded - 4 Wall
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.145 (3.68mm)
Insulation Height 0.386 (9.80mm)
Contact Shape Circular
Contact Finish Thickness - Mating 150.0uin (3.81um)
Contact Finish - Post Tin-Lead
Warranty One Year
Overall Contact Length -
Row Spacing - Mating 0.163 (4.14mm)
Series Mini-Universal MATE-N-LOK
Part Status In Stock
Condition NEW
