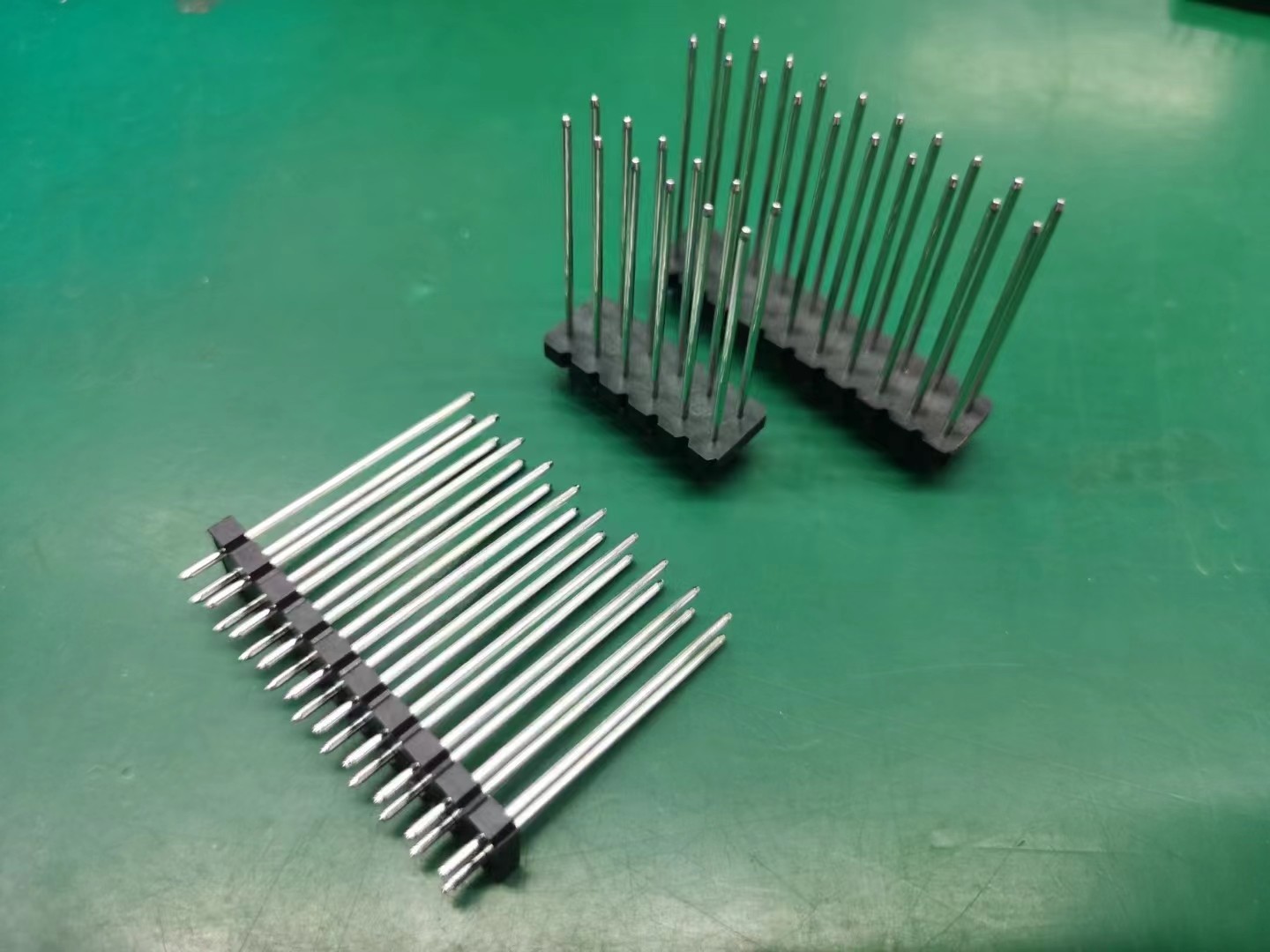

4.14mm Pitch LCP Connector Straight DIP Connector Gold Tin Plated
Place of Origin China
Certification ISO9001, ISO14001, IATF16949
Minimum Order Quantity 1000 pcs
Packaging Details tube, tray
Delivery Time 2 weeks
Supply Ability 10k daily capacity
Product Details
Plastic Housing PBT, LCP, PA6T Contact Material Brass, Phosphor Bronze
Current Rated 9A Rated Voltage 500V
Plating Tin Or Gold Plated Temperature Range -40-+105 Degree
High Light

4.14mm pitch LCP connector

,

Straight DIP Connector Gold Tin Plated

,

4.14mm pitch DIP connector

Product Description

4.14mm pitch pin header single dual row gold tin plated DIP straight LCP connector automotive



Current Rating :9AMP
Insulator Resistance :1000MΩ Min.
Contact Resistance :20mΩ Max.
Voltage Resistance :AC 500V
Operating Temperature :-40℃ ~ +105℃
Metallic Material :Copper alloy
Metal Treatment :Ni(30~50u")+See description
Insulator Material :PA6T/PA9T/LCP UL94V-0
Resistance To Soldering Heat :260°C ±5°C



4.14mm Pitch LCP Connector Straight DIP Connector Gold Tin Plated 0
