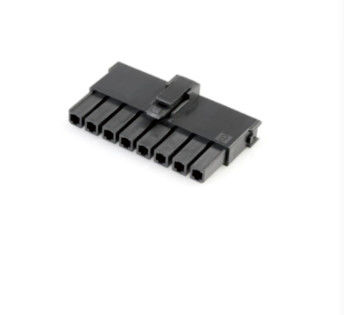

5.7mm Pitch Nylon 66 UL94V-0 Wafer Connector CONN Housing Single Row
  • 5.7mm Pitch Nylon 66 UL94V-0 Wafer Connector CONN Housing Single Row
  • 5.7mm Pitch Nylon 66 UL94V-0 Wafer Connector CONN Housing Single Row
Place of Origin China
Certification ISO9001, IATF16949
Minimum Order Quantity 1000 pcs
Packaging Details poly bag
Delivery Time 2 weeks
Supply Ability 20k daily capacity
Product Details
Pastic Housing PA66 Color Black
Current Rated 23A Voltage Rated 600V
Temperature Range -25-+85 Degree Pins 2-8Pin
High Light

5.7mm pitch Wafer Connector

,

5.7mm pitch CONN housing single row

,

Nylon 66 UL94V-0 Wafer Connector
Product Description

5.7mm pitch CONN housing single row black PA66 2-8PIN automotive



Specifications:
Material And Finish:
Insulator:Nylon 66 UL94V-0;Color:Black


Rating:
Current Rating:23A AC/DC
Voltage Rating:600V AC/DC
Operating Temperature Range:-40°~+105°C


Electrical:
Contact resistance:10m Ohm Max
Insulator resistance:1000M ohm min.
Withstanding Voltage:2200V AC/Minute



5.7mm Pitch Nylon 66 UL94V-0 Wafer Connector CONN Housing Single Row 0
