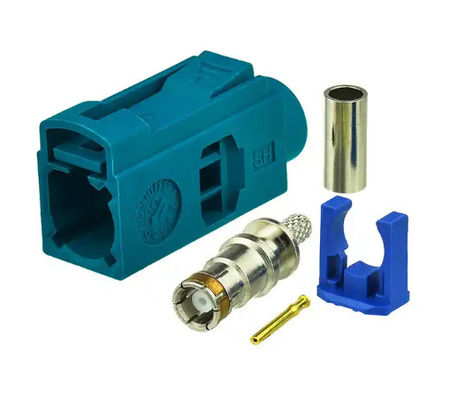

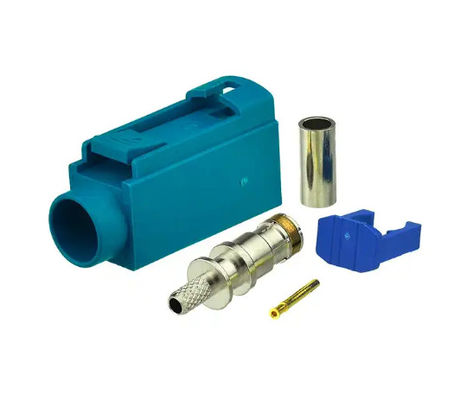

Fakra Connector Fakra Z Type Female Jack Crimp Connector Waterblue Neutral Coding for GPS DAB Satellite Radio Antenna
| Place of Origin | China |
|---|---|
| Certification | ISO9001, IATF16949 |
| Minimum Order Quantity | 1000 pcs |
| Packaging Details | poly bag |
| Delivery Time | 2 weeks |
| Supply Ability | 10k daily capacity |
Product Details
| Type | SMB | Gender | Female |
|---|---|---|---|
| Application | Automotive, GPS, Tbox | Frequency | 50 Ohm |
| VSWR | DC~2GHz<1.2 | Material | Brass |
| Insulator | PTFE |
Product Description
Fakra Connector Fakra Z Type Female Jack Crimp Connector Waterblue Neutral Coding for GPS DAB Satellite Radio Antenna
Description:
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.
| Major characteristics: | ||||||
| Double-locked, fool-proofing assembly with the color and the structure | ||||||
| The connector is be protected by the cap . | ||||||
| Easy to assembly | ||||||
| Many difference between the connector and the cap. | ||||||
| The product technical characteristics: | ||||||
| Body | Brass, Ni-plated | |||||
| Socket | beryllium-copper, Gold-plated | |||||
| Pin contact | Brass | |||||
| Insulator | PTFE | |||||
| Crimp ferrule | brass, Ni-plated | |||||
| O-ring | beryllium-copper | |||||
| Shell | PA66+30%GF | |||||
| Technical characteristics: | ||||||
| Impedance | 50Ω | |||||
| Frequency Range | 4GHz | |||||
| Withstanding Voltage | 1000V(RMS) | |||||
| Contact resistance: | ||||||
| Center contact | ≤ 20m | |||||
| Outer contact | ≤10m | |||||
| Insulation | ≥1,000MΩ | |||||
| VSWR | DC - 2GHz<1.2 | |||||
| Mechanical characteristics: | ||||||
| Assembly | locked | |||||
| Durability | ≥ 500 cycles | |||||
| Temperature | -40 ~ +85°C | |||||
